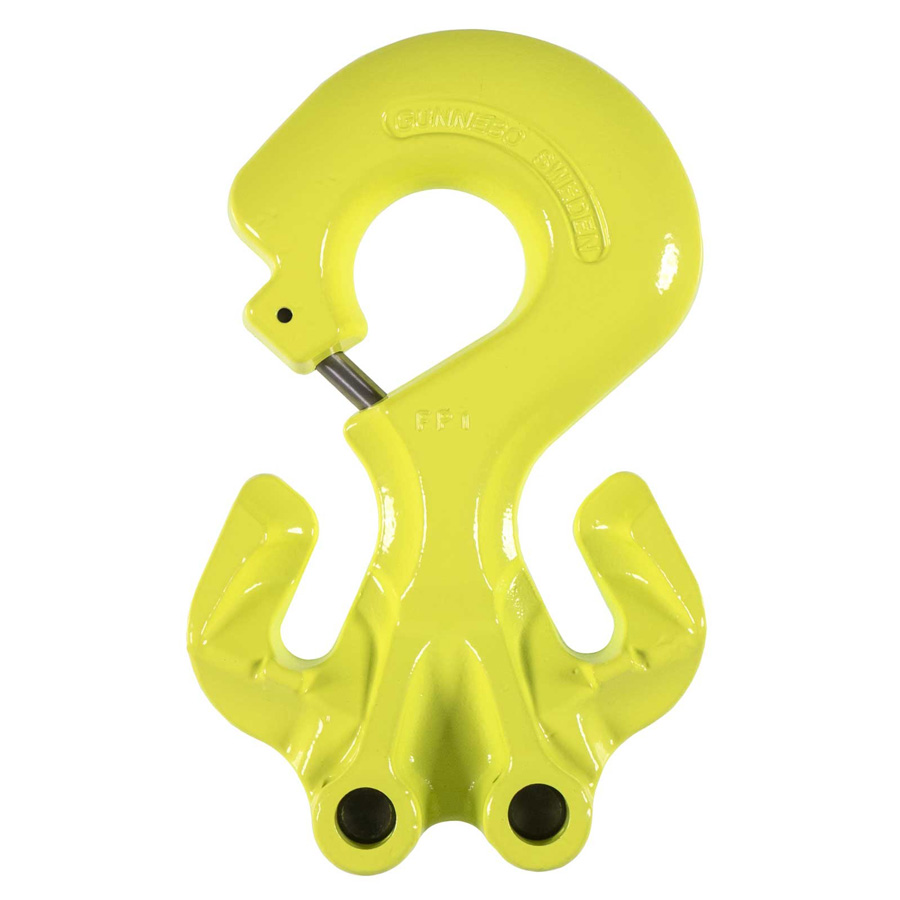

C-grab duo CGD GrabiQ
For use with master links.
All GrabiQ C-connectors can be equipped with QuickPin.

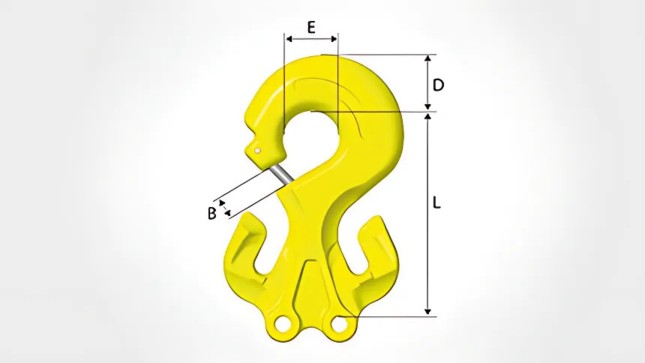

| Part no | Code | WLL t | L | B | E | H | Weight kgs |
|---|---|---|---|---|---|---|---|
| 1045206 | CGD-6-10 | 2.1 | 79 | 11 | 24 | 22 | 0.507 |
| 1045208 | CGD-8-10 | 3.5 | 107 | 12 | 32 | 29 | 1.186 |
| 1045210 | CGD-10-10 | 5.6 | 134 | 15 | 40 | 37 | 2.359 |
| 1045213 | CGD-13-10 | 9.5 | 173 | 19 | 48 | 48 | 5.469 |
| 1045216 | CGD-16-10 | 14.0 | 215 | 22 | 64 | 57 | 9.391 |
