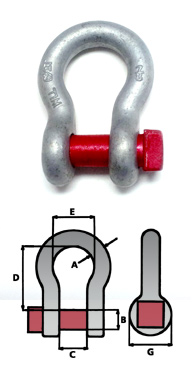

| Artículo | Tamaño mm |
Tamaño pulg |
A mm |
B mm |
C mm |
D mm |
E mm |
G mm |
SWL ton |
Peso kg |
|
| 280712 | 12 | 1/2 | 12 | 16 | 20 | 47 | 33 | 30 | 2.0 | 0.28 | |
| 280716 | 16 | 5/8 | 16 | 19 | 27 | 60 | 43 | 40 | 3.2 | 0.62 | |
| 280719 | 19 | 3/4 | 19 | 22 | 31 | 70 | 51 | 47 | 4.8 | 1.00 | |
| 280722 | 22 | 7/8 | 22 | 25 | 35 | 83 | 57 | 53 | 6.5 | 1.50 | |
| 280725 | 25 | 1 | 25 | 28 | 43 | 94 | 68 | 60 | 8.5 | 2.38 | |
| 280728 | 1 1/8 | 9.0 | |||||||||
| 280732 | 32 | 1 1/4 | 32 | 35 | 51 | 118 | 82 | 75 | 12.0 | 4.23 | |
| 280738 | 38 | 1 1/2 | 38 | 42 | 60 | 122 | 97 | 91 | 17.0 | 7.05 | |
| 280744 | 44 | 1 3/4 | 44 | 51 | 73 | 146 | 104 | 108 | 25.0 | 13.57 |
