Gunnebo Webbing Sling (GWS)
Eslinga planas dos capas con ojos doblados y protegidos.
Hechas 100% en poliéster de alta resistencia
Trama cerrada y tela sellada para mayor resistencia al desgaste.
Cumple con especificaciones EN 1492-1.
Factor de Seguridad: 7:1

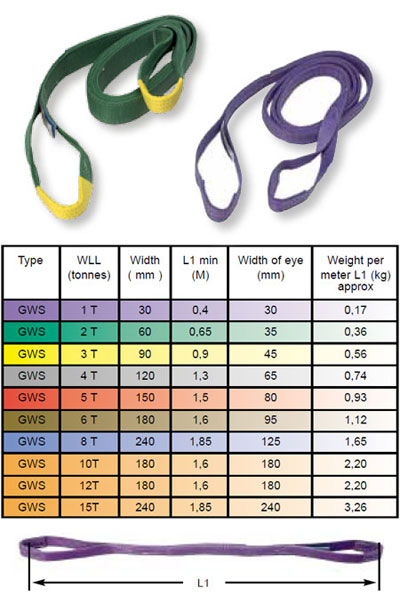

Gunnebo Lifting Flat webbing slings with folded and protected eyes.
Made of 100% high-tensile polyester, close-woven sealed material for high wear resistance.
According to standard specifications.
Gunnebo Lifting webbing sling for safe lifting – marked with Gunnebo Lifting manufacturer ID.
L1 = effective length
| Código / Code | Largo L1 | Color | WLL t | Ancho | Peso kgs |
|---|---|---|---|---|---|
| 237010G / M37P202 | 2 | Verde | 2 | 60 mm | 0.89 |
| 237003G / M37P203 | 3 | Verde | 2 | 60 mm | 1.27 |
| 237012G / M37P204 | 4 | Verde | 2 | 60 mm | 1.63 |
| 237013G / M37P205 | 5 | Verde | 2 | 60 mm | 1.97 |
| 237014G / M37P206 | 6 | Verde | 2 | 60 mm | 2.31 |
| 237016G / M37P208 | 8 | Verde | 2 | 60 mm | 3.10 |
| 238010G / M37P302 | 2 | Amarillo | 3 | 90 mm | 1.24 |
| 238003G / M37P303 | 3 | Amarillo | 3 | 90 mm | 1.91 |
| 238004G / M37P304 | 4 | Amarillo | 3 | 90 mm | 2.41 |
| 238013G / M37P305 | 5 | Amarillo | 3 | 90 mm | 3.00 |
| 238014G / M37P306 | 6 | Amarillo | 3 | 90 mm | 3.56 |
| 238102G / M37P402 | 2 | Gris | 4 | 120mm | 1.75 |
| 238103G / M37P403 | 3 | Gris | 4 | 120mm | 2.50 |
| 238104G / M37P404 | 4 | Gris | 4 | 120mm | 3.25 |
| 238105G / M37P405 | 5 | Gris | 4 | 120mm | 4.00 |
| 238106G / M37P406 | 6 | Gris | 4 | 120mm | 4.75 |
| 238202G / M033502 | 2 | Rojo | 5 | 150 mm | 2.49 |
| 238203G / M033503 | 3 | Rojo | 5 | 150 mm | 3.55 |
| 238204G / M033504 | 4 | Rojo | 5 | 150 mm | 4.61 |
| 238205G / M033505 | 5 | Rojo | 5 | 150 mm | 5.68 |
| 238206G / M033506 | 6 | Rojo | 5 | 150 mm | 6.74 |
| 238208G / M033508 | 8 | Rojo | 5 | 150 mm | 8.86 |
| 238304G / M033604 | 4 | Marrón | 6 | 180mm | 4.64 |
| 238308G / M033608 | 8 | Marrón | 6 | 180mm | 9.28 |
| 238312G / M033612 | 12 | Marrón | 6 | 180mm | 13.92 |
